How the sliding mechanism works
The basic principle is simple: one or more flat glasses slide horizontally thanks to bearings which, rolling inside a track, make the movement fluid and simple. In the sliding door shower enclosure, the fixed glass remains in position, while the mobile door moves laterally to allow access to the shower.
The quality of this mechanism largely depends on the type of bearings used. The best are made of steel and Teflon: a combination that guarantees long-lasting smoothness, resistance to corrosion and the absence of annoying noises over time. The bearings can be positioned in two ways: exposed, where the sliding system is visible in the internal part of the profile, or masked by a decorative profile that hides them from view (called carter). The first solution gives a more technical and industrial effect; the second is more refined and also has the practical advantage of protecting the mechanism from dirt, making cleaning easier.
Research in this area has led some manufacturers to develop even more advanced solutions. The Relax company, for example, has introduced a double bearing system in the Calamo collection which better distributes the load of the glass on the track, further reducing friction and guaranteeing an even more fluid and silent movement over time. A technical choice that demonstrates how even an apparently secondary component can make a concrete difference in daily experience.
Once the shower cabin has been assembled, the bearings are adjustable: a detail that is not secondary, because it allows you to optimize the smoothness of the door even after installation, compensating for example small inaccuracies in assembly. On this front, the most recent micrometric adjustment systems significantly simplify the operation: unlike the classic eccentric adjustment, which requires manual skills and sometimes the support of a second person, this is a mechanism that resolves the calibration with a single precise movement, within the reach of even those who are not expert technicians.
Then there are shower cabin models that introduce important innovations, such as Infinito by Relax. The first sliding shower cubicle equipped with magnetic levitation. Thanks to a powerful magnet present in the upper profile, the door is slid back and forth without any type of friction. The advantage is notable: zero wear and zero maintenance.
With frame or without frame?

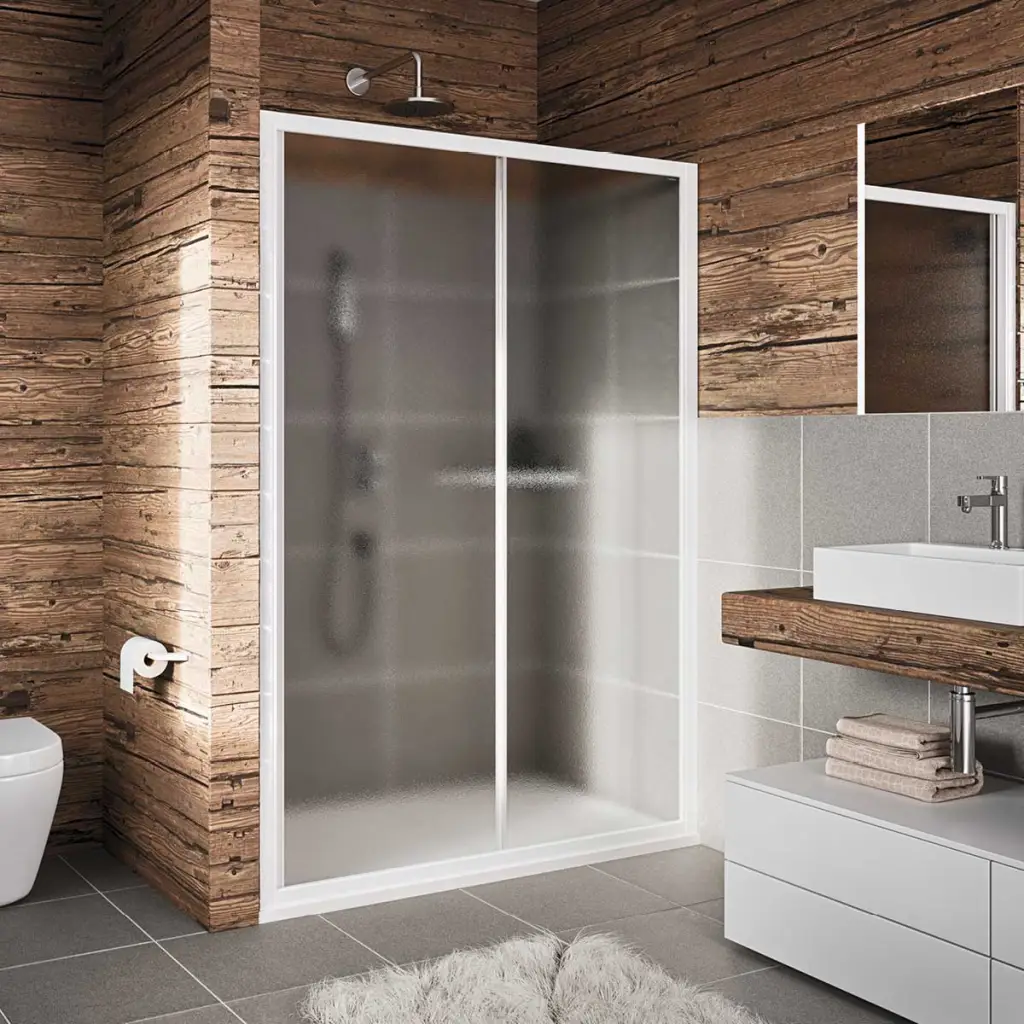

Another fundamental distinction concerns the presence or absence of the frame in the lower part of the shower cabin. Sliding shower enclosures with a frame have a profile at the bottom and sometimes a mechanism for releasing the door. This type of structure essentially offers a more effective water seal: the bottom frame acts as an additional seal that minimizes the risk of leaks. It is particularly recommended in smaller shower cubicles or those that have to deal with considerable wall out-of-squareness.
Shower enclosures without a frame in the lower part have a thinner profile, which only acts as a guide for the sliding of the door. From an aesthetic point of view, this solution is certainly lighter and more modern. The choice between the two options depends on your priorities: those who put minimal aesthetics first will tend to go without a frame, those who favor practicality and maximum stability will choose the complete frame.
The most innovative solutions try to combine both needs. A seal integrated into the lower profile, for example, can guarantee excellent water tightness without resorting to a bulky frame, maintaining the visual cleanliness typical of the most modern cabins.
The advantages of the sliding shower cubicle
The popularity of the sliding door is no coincidence. The most immediate advantage is the absence of lateral bulk: unlike a swing door, which requires free space in front of it to open, the sliding door moves parallel to the wall and never invades the bathroom space. This makes it particularly suitable for bathrooms of all types and sizes. Then there is the dimensional versatility. Shower cabins with sliding doors can be custom built to adapt to niches of different widths, easily managing the relationship between the fixed part and the mobile part (provided that the fixed part is the same as or larger than the mobile part).
Water resistance is another strong point. A sliding shower enclosure, unlike its hinged or pivoting counterparts, will not have any external dripping when opening the door.
When to avoid the sliding door
No solution is universally perfect, and the sliding door is no exception. Its main limitation is the reduction of the entrance space: since the movable glass partially overlaps the fixed glass, the effective opening is always smaller than the total width of the cabin. It should be considered that at least half of the overall width will be occupied by the structure and the overlapping of the glass.
For this reason, a sliding shower enclosure in a niche is feasible when the available side is greater than 100 cm. If the size is smaller, it is worth evaluating solutions with hinged or folding doors, which offer more generous passages in small spaces. If you opt for a double sliding door, you start from at least 70 cm.

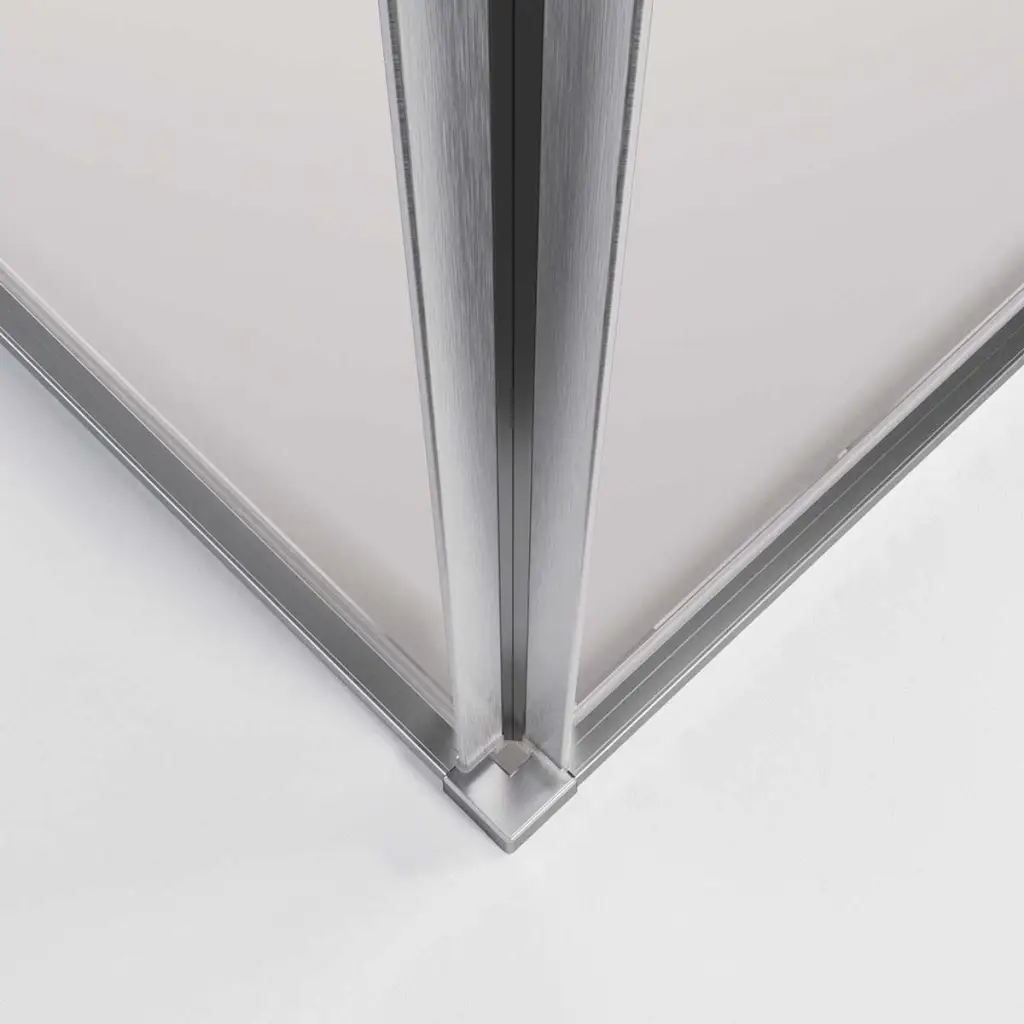

The aesthetics of the profiles deserve a separate discussion: generously thick aluminum frames can be visually invasive, especially in bathrooms with an essential design. In these cases, moving towards models with profiles reduced to a minimum lightens the overall appearance without sacrificing functionality.
Accessories that make the difference
In the world of sliding shower enclosures, accessories can transform a good product into an excellent product. One of the most appreciated is the soft close system, which is a soft closing mechanism that automatically slows down the door in the last centimeters of travel, preventing it from slamming. It works well starting from shower enclosures 100 cm wide, dimensions that allow it to be technically implemented.

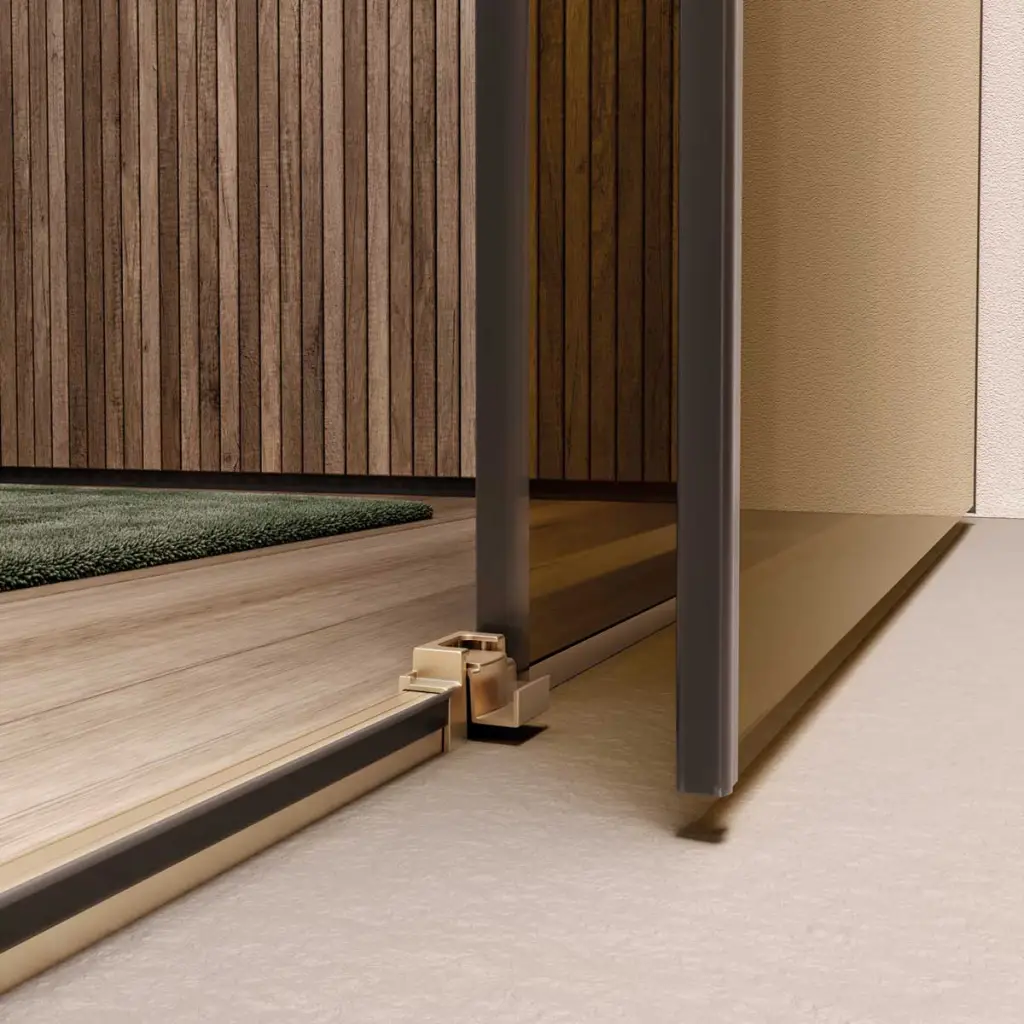

The door release system is also very useful, allowing you to free the mobile glass from the lower track, leaving it anchored only at the top. Cleaning the windows thus becomes much easier, because you can easily reach every corner without having to dismantle anything. Some models have very intuitive variants: a simple button to release the door.
The role of design in the sliding shower enclosure
An often underestimated aspect when choosing a sliding cabin is the design of the details: profiles, handles and general proportions contribute significantly to the final appearance of the bathroom. The trend of recent years is clearly going in the direction of minimalism, with ever thinner profiles, discreet handles and glass that is increasingly dominant over the metal structure.
An interesting indicator of this evolution is the distance between the fixed glass and the mobile door. In traditional shower enclosures this measurement is around 18-20 mm, a visible gap that betrays the mechanics of the system. The most innovative shower cabins manage to reduce this distance significantly: Relax, with the Calamo collection, has brought this value to just 9 mm, a result which on a visual level makes the two glasses almost a single element, with notable effects on the brightness and perceived lightness of the entire composition.

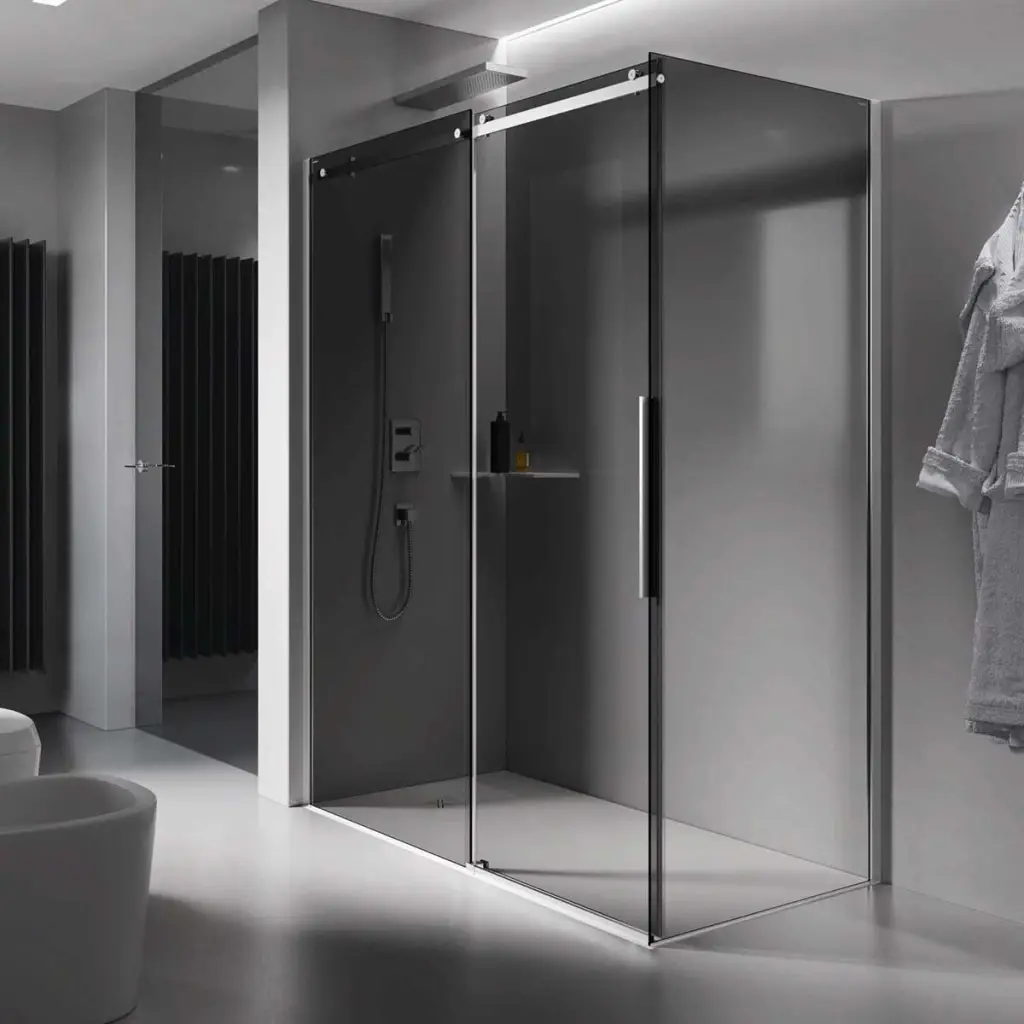

The handle also deserves attention. A handle developed for the entire height of the glass, positioned on the end of the mobile panel, is not just an aesthetic choice: it allows you to push the door to the limit of its travel, maximizing the effective opening and making access more convenient. A simple detail, but which makes its usefulness felt in daily practice. However, there are different handle models that can be closer to the owner’s taste and needs in terms of grip.
Certified quality: what to look for in a sliding box
Faced with a rich and varied market, one of the most useful tools for orientation is the presence of certifications issued by recognized third-party bodies. The Relax company, for example, subjects all its models to rigorous tests conducted by TÜV SÜD, the prestigious German certification body known worldwide for the severity of its standards. A certification that is not a bureaucratic detail, but concrete confirmation that the product is built to last over time, maintaining its performance unchanged even after thousands of opening and closing cycles.
Choose the right sliding box
Choosing the ideal sliding shower enclosure involves some fundamental questions: how much space do I have available? Do I need standard size or custom made? How important is aesthetics compared to practicality? Do I want a product that is easy to clean and maintain over time?
The answers lead to very different solutions. Those looking for maximum technology combined with a contemporary and minimalist design will find in the most recent collections, such as Calamo by Relax, concrete examples of how technical innovation and aesthetic research can proceed in the same direction. Those who favor consolidated and versatile solutions have a wide range of reliable models available, suitable for every bathroom configuration.
Investing in a good shower cabin means investing in your daily well-being: few objects in the house are used with the same frequency, and few have the same ability to determine the quality of a moment that, every day, is all for yourself.
